| Tempat asal | Cina |
| Nama merek | ZANE |
| Sertifikasi | CE，ISO |

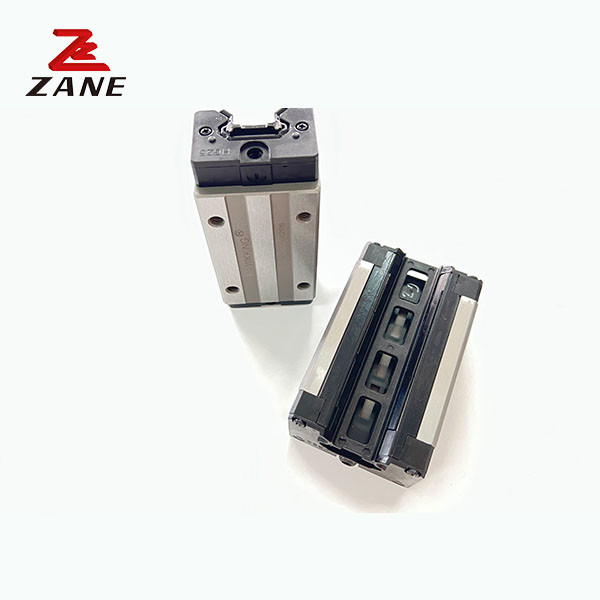

| Nomor model | ZANE-GEH |
Fitur produk:
1, kemampuan pendinginan jantung otomatis
2, dengan interchangeability
3, semua arah adalah kekakuan tinggi
Aplikasi produk
1, pusat pengolahan
2, mesin alat
3, mesin pengolahan presisi
4, mesin pemotong berat
5, mesin pemotong marmer
6, mesin penggiling
7, mesin injeksi
8, pukulan
9, peralatan otomatis
10, peralatan transportasi
11Instrumen pengukuran
| Model | Ukuran kombinasi (mm) | Ukuran blok ((mm) | Ukuran rel geser ((mm) |
Pemasangan baut untuk rel geser |
Beban dasar dinamis tetap | beban dasar tetap | Momentum statis yang diizinkan | berat badan | |||||||||||||||||||||||||
| Tn kN-m |
M.P. |
KN-ku |
Blok |
Slide |
|||||||||||||||||||||||||||||
| H | Apa kabar? | N | W | B | Bi | C | Li | L | Ki | Ki | G | Mxl | T | H2 | h3 | w/ | Waktu | D | h | d | P | E | (mm) | C (((kN) | Co ((kN) | ||||||||
| GEH15SA | 24 | 4.5 | 9.5 | 34 | 26 | 4 | - | 23.1 | 40.1 | 14.8 | 3.5 | 5.7 | M4x6 | 6 | 5.5 | 6 | 15 | 12.5 | 6 | 4.5 | 3.5 | 60 | 20 | M3xl6 | 5.35 | 9.40 | 0.08 | 0.04 | 0.04 | 0.09 | 1.25 | ||
| GEH15CA | 26 | 39.8 | 56.8 | 10.15 | 7.83 | 16.19 | 0.13 | 0.10 | 0.10 | 0.15 | |||||||||||||||||||||||
| GEH20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 29 | 50 | 18.75 | 4.15 | 12 | M5x7 | 7.5 | 6 | 6 | 20 | 15.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5xl6 | 7.23 | 12.74 | 0.13 | 0.06 | 0.06 | 0.15 | 2.08 | ||
| GEH20CA | 32 | 48.1 | 69.1 | 12.3 | 10.31 | 21.13 | 0.22 | 0.16 | 0.16 | 0.24 | |||||||||||||||||||||||
| GEH25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 35.5 | 59.1 | 21.9 | 4.55 | 12 | M6x9 | 8 | 8 | 8 | 23 | 18 | 11 | 9 | 7 | 60 | 20 | M6x20 | 11.40 | 19.50 | 0.23 | 0.12 | 0.12 | 0.25 | 2.67 | ||
| GEH25CA | 35 | 59 | 82.6 | 16.15 | 16.27 | 32.40 | 0.38 | 0.32 | 0.32 | 0.41 | |||||||||||||||||||||||
| GEH30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 41.5 | 69.5 | 26.75 | 6 | 12 | M3xl2 | 9 | 8 | 9 | 28 | 23 | 11 | 9 | 7 | 80 | 20 | M6x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 4.35 | ||
| GEH30CA | 40 | 70.1 | 98.1 | 21.05 | 23.70 | 47.46 | 0.68 | 0.55 | 0.55 | 0.76 | |||||||||||||||||||||||
| GEH35SA | 48 | 11 | 18 | 70 | 50 | 10 | - | 45 | 75 | 28.5 | 7 | 12 | M8xl2 | 10 | 8.5 | 8.5 | 34 | 27.5 | 14 | 12 | 9 | 80 | 20 | M8x25 | 16.42 | 28.10 | 0.40 | 0.21 | 0.21 | 0.45 | 6.14 | ||
| GEH35CA | 50 | 78 | 108 | 20 | 33.35 | 64.84 | 0.98 | 0.69 | 0.69 | 1.13 | |||||||||||||||||||||||
