Nidec Shimpo Gearbox
>
|
| Tempat asal | Jepang |
| Nama merek | Nidec |
| Sertifikasi | CE,ISO |
| Nomor model | VRB |

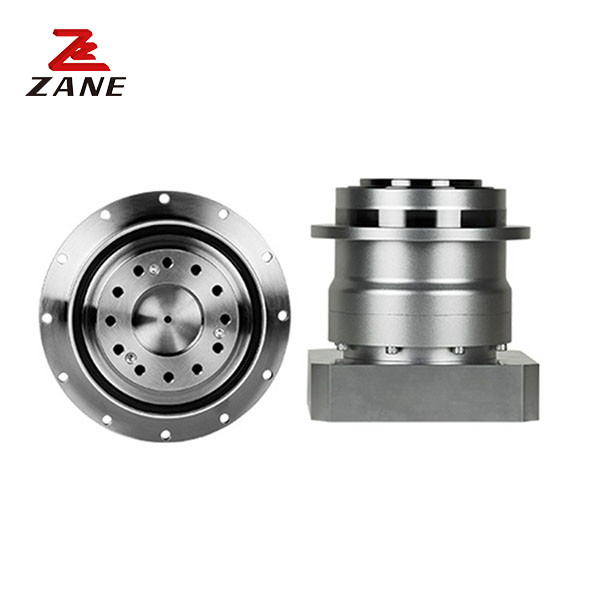

Nidec Shimpo Gearbox transmisi adalah gearbox berkualitas tinggi yang dirancang untuk operasi yang dapat diandalkan dan efisien dalam robot, peralatan otomatisasi, dan aplikasi mesin CNC.Diproduksi oleh Nidec Shimpo, gearbox ini dibangun dengan bahan besi untuk beban radial maksimum 9100N dan pengaturan gigi planet.membuat pilihan yang sempurna untuk setiap mesin otomatis.
|
Bingkai ukuran |
Tahap | Rasio | Torsi output nominal | Torsi output maksimum | Torsi hentian darurat | Kecepatan input nominal | Kecepatan input maksimum | Beban radial yang diizinkan | Beban aksial yang diizinkan |
| [Nm] | [Nm] | [Nm] | [rpm] | [rpm] | [N] | [N] | |||
|
140 |
1 Single |
3 | 240 | 470 | 1000 | 2000 | 4000 | 3200 | 2400 |
| 4 | 240 | 700 | 1250 | 2000 | 4000 | 3500 | 2700 | ||
| 5 | 360 | 700 | 1250 | 2000 | 4000 | 3800 | 3000 | ||
| 6 | 360 | 700 | 1250 | 2000 | 4000 | 4000 | 3300 | ||
| 7 | 366 | 700 | 1250 | 2000 | 4000 | 4200 | 3500 | ||
| 8 | 360 | 700 | 1250 | 2000 | 4000 | 4400 | 3700 | ||
| 9 | 240 | 470 | 1000 | 2000 | 4000 | 4600 | 3900 | ||
| 10 | 240 | 470 | 1000 | 2000 | 4000 | 4700 | 4100 | ||
| Ganda | 15 | 240 | 470 | 1000 | 2000 | 4000 | 5400 | 4900 | |
| 16 | 360 | 700 | 1250 | 2000 | 4000 | 5500 | 5000 | ||
| 20 | 360 | 700 | 1250 | 2000 | 4000 | 6000 | 5500 | ||
| 25 | 360 | 700 | 1250 | 2000 | 4000 | 6400 | 6100 | ||
| 28 | 360 | 700 | 1250 | 2000 | 4000 | 6700 | 6400 | ||
| 30 | 240 | 470 | 1000 | 2000 | 4000 | 6800 | 6600 | ||
| 35 | 360 | 700 | 1250 | 2000 | 4000 | 7200 | 7000 | ||
| 40 | 360 | 700 | 1250 | 2000 | 4000 | 7500 | 7500 | ||
| 45 | 240 | 470 | 1000 | 2000 | 4000 | 7800 | 7900 | ||
| 50 | 360 | 700 | 1250 | 2000 | 4000 | 8100 | 8200 | ||
| 60 | 360 | 700 | 1250 | 2000 | 4000 | 8600 | 8200 | ||
| 70 | 360 | 700 | 1250 | 2000 | 4000 | 9100 | 8200 | ||
| 80 | 360 | 700 | 1250 | 2000 | 4000 | 9100 | 8200 | ||
| 90 | 240 | 470 | 1000 | 2000 | 4000 | 9100 | 8200 | ||
| 100 | 240 | 470 | 1000 | 2000 | 4000 | 9100 | 8200 |
|
ukuran |
Tahap |
Rasio |
Beban radial maksimum |
Maksimal beban aksial |
Berat badan |
Moment of inertia (φ19) | Moment of inertia (φ)28) | Moment of inertia (φ38) | Moment of inertia (φ48) |
| [N] | [N] | [kg] | [kgcm2] | [kgcm2] | [kgcm2] | [kgcm2] | |||
|
140 |
1 Single |
3 | 9100 | 8200 | 16 | - | 12 | 20 | 42 |
| 4 | 9100 | 8200 | - | 7.5 | 15 | 37 | |||
| 5 | 9100 | 8200 | - | 5.8 | 14 | 36 | |||
| 6 | 9100 | 8200 | - | 4.9 | 13 | 35 | |||
| 7 | 9100 | 8200 | - | 4.1 | 12 | 34 | |||
| 8 | 9100 | 8200 | - | 3.8 | 12 | 34 | |||
| 9 | 9100 | 8200 | - | 3.6 | 11 | 34 | |||
| 10 | 9100 | 8200 | - | 3.5 | 11 | 34 | |||
|
Ganda |
15 | 9100 | 8200 | 17 | 1.3 | 3.2 | 11 | - | |
| 16 | 9100 | 8200 | 1.5 | 3.1 | 11 | - | |||
| 20 | 9100 | 8200 | 1.2 | 3.1 | 11 | - | |||
| 25 | 9100 | 8200 | 1.1 | 3.3 | 11 | - | |||
| 28 | 9100 | 8200 | 1.4 | 2.8 | 11 | - | |||
| 30 | 9100 | 8200 | 0.85 | 3.1 | 10 | - | |||
| 35 | 9100 | 8200 | 1.1 | 2.8 | 11 | - | |||
| 40 | 9100 | 8200 | 0.83 | 3.0 | 10 | - | |||
| 45 | 9100 | 8200 | 1.1 | 2.8 | 11 | - | |||
| 50 | 9100 | 8200 | 0.81 | 2.8 | 10 | - | |||
| 60 | 9100 | 8200 | 0.81 | 2.8 | 10 | - | |||
| 70 | 9100 | 8200 | 0.80 | 2.8 | 10 | - | |||
| 80 | 9100 | 8200 | 0.80 | 2.8 | 10 | - | |||
| 90 | 9100 | 8200 | 0.80 | 2.8 | 10 | - | |||
| 100 | 9100 | 8200 | 0.80 | 2.8 | 10 | - |
Kotak gigi Nidec Shimpo tersedia dalam berbagai jenis gigi, termasuk gigi dorong, gigi heliks, gigi bevel, dan gigi cacing.dan pilihan jenis peralatan akan tergantung pada persyaratan spesifik dari aplikasi.
