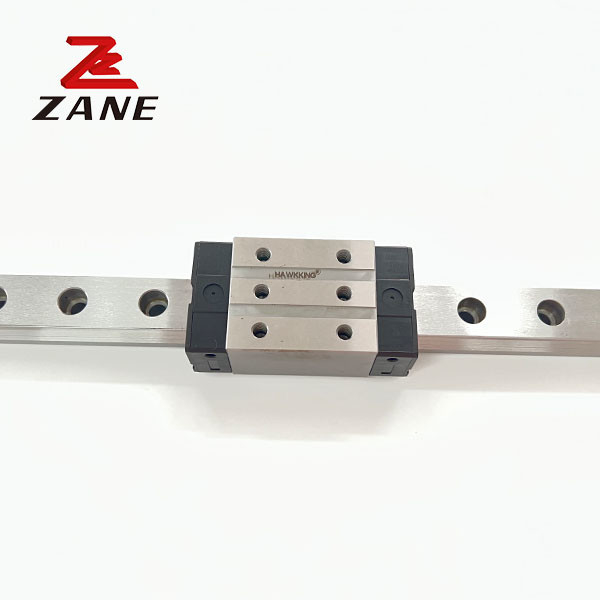

GRH30CA GRH30HA Komponen Blok Panduan Rail Linear Untuk Sistem Robot
CNC Linear Slide Block GRH30CA GRH30HA Rail Guideways dirancang dengan kapasitas beban dan kekakuan yang lebih tinggi daripada produk serupa lainnya dengan alur busur melingkar dan struktur yang dioptimalkan.arah radial dan lateralDengan demikian GH seri panduan linier dapat mencapai umur panjang dengan kecepatan tinggi, akurasi tinggi dan gerakan linier yang halus.
| Model | Kombinasi (mm) |
Ukuran blok ((mm) | Ukuran rel geser ((mm) | Bolt pemasangan untuk ukuran rel geser | Dasar beban tetap dinamis |
Beban dasar tetap | Momentum statis yang diizinkan | Berat badan | |||||||||||||||||||||||
| Mg kN-m |
M.P. kN-m |
Aku... kN-m |
Blok kg |
Slide kg/m |
|||||||||||||||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | Mxl | T | H2 | H3 | W | H. | D | h | d | P | E | (mm) | C (((kN) | C0 (kN) | ||||||
| GRH 15CA | 28 | 4 | 9.5 | 34 | 26 | 4 | 26 | 45 | 68 | 13.4 | 4.7 | 5.3 | M4x8 | 6 | 7.6 | 10.1 | 15 | 6.5 | 7.5 | 5.7 | 4.5 | 30 | 20 | M4x16 | 11.3 | 24 | 0.311 | 0.173 | 0.173 | 0.20 | 1.8 |
| GRH 20CA | 34 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5x8 | 8 | 8.3 | 8.3 | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5x20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.40 | 2.76 |
| GRH 20HA | 50 | 77.5 | 106 | 18.8 | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.53 | |||||||||||||||||||||
| GRH 25CA | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 7.25 | 12 | M6x8 | 9.5 | 10.2 | 10 | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6x20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.61 | 3.08 |
| GRH 25HA | 50 | 81 | 114.4 | 21.5 | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.75 | |||||||||||||||||||||
| GRH 30CA | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | M8x10 | 9.5 | 9.5 | 10.3 | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8x25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 0.90 | 4.41 |
| GRH 30HA | 60 | 93 | 131.8 | 24.5 | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.16 | |||||||||||||||||||||
| GRH 35CA | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | M8x12 | 12 | 16 | 19.6 | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8 × 25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.57 | 6.06 |
| GRH 35HA | 72 | 106.5 | 151.5 | 25.25 | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 2.06 | |||||||||||||||||||||
| GRH 45CA | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10x17 | 16 | 20 | 24 | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12 x35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.18 | 9.97 |
| GRH 45HA | 80 | 139.8 | 187 | 37.9 | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.13 | |||||||||||||||||||||
| GRH 55CA | 80 | 10 | 23.5 | 100 | 75 | 2.5 | 75 | 125.5 | 183.7 | 37.75 | 12.5 | 12.9 | M12x18 | 17.5 | 22 | 27.5 | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14x45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 4.89 | 13.98 |
| GRH 55HA | 95 | 173.8 | 232 | 51.9 | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 6.68 | |||||||||||||||||||||
| GRH 65CA | 90 | 12 | 31.5 | 126 | 76 | 25 | 70 | 160 | 232 | 60.8 | 15.8 | 12.9 | M16x20 | 25 | 15 | 15 | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16x50 | 213 | 411.6 | 16.20 | 11.59 | 11.59 | 8.89 | 20.22 |
| GRH 65HA | 120 | 223 | 295 | 67.3 | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 2.13 | |||||||||||||||||||||
Blok linier dapat dibagi menjadi seri berikut:
Seri GH... mesin penggiling, penggiling, dan pengeboran, mesin bubut, pusat mesin.
Seri GE - Peralatan otomatis, perangkat transfer kecepatan tinggi, peralatan semikonduktor, mesin pemotong kayu, peralatan pengukuran presisi.
Seri GMN/GMW - perangkat miniatur, peralatan semikonduktor, peralatan medis.
